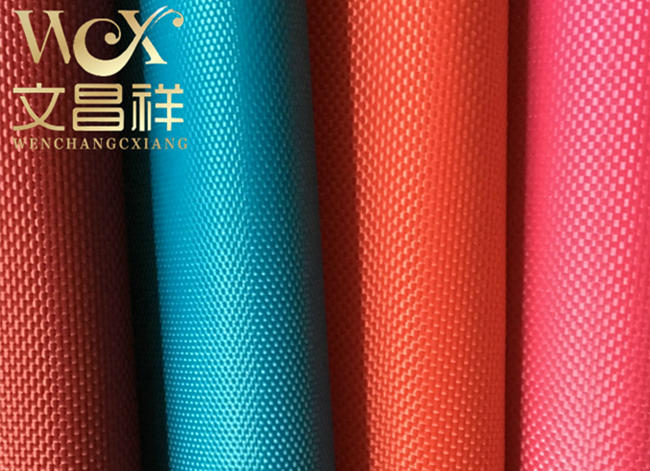

Waterproof Oxford fabric is a commonly used fabric for outdoor products such as tents and bags. There are various testing methods for waterproof oxford fabrics. At present, the most commonly used testing methods for waterproof Oxford fabrics at home and abroad include the Japanese Industrial Standard Testing Method of Water Vapor Cup Method Standardized by the American Society for Testing and Materials.
All coatings The layer or laminated fabric is secured to the support frame with rubber rings, with the coated or laminated side facing outwards. The installation of the sample support system shall be subject to being able to float in a water tank with a water temperature of 23°C. After testing the quality of the test cup (including sample, desiccant and film) with the film facing upwards, quickly turn the test cup upside down and place it into the sample holder. This assembly method is placed in a constant temperature device of 30℃±2℃. After 15 minutes, take the test cup out of the thermostatic device, turn it upside down and measure its weight. The above are the most practical methods for testing waterproof Oxford fabrics at home and abroad. Most waterproof Oxford fabrics that pass these testing methods can achieve waterproof and moisture-proof effects.
The United States has always been in a leading position in the waterproof fabric industry, and the country’s market is also very large. The test data of this method is also relatively high, and the ASTM standard has naturally become the most commonly used method. Most customers now use this method for testing. The test principle of the water vapor inverted cup method is to cover the fabric to be tested on a breathable cup filled with distilled water, fix it and turn it upside down, weigh it with a top-loading balance with an accuracy of 0.001g, and place it in the position of the wind tunnel row. superior. Before the cup enters an environmental chamber with a temperature of 23°C, a relative humidity of 50%, and a wind speed of 2.5m/s for weighing, record the temperature and relative humidity of the environment. The weight of each cup and the time it took to weigh it were recorded. Record the weight at 3h, 6h, 9h, 13h, 23h, 26h, and 30h, and use the formula wvt=24*△m/(s*t) to calculate the water vapor transfer rate. The average value of 6 samples is used as the test result. The average value is multiplied by 24 and converted to the result in g/m2*24h.

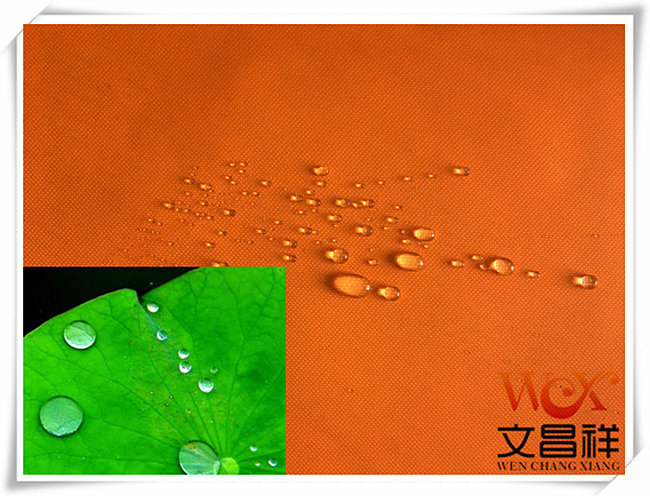

Waterproof Oxford cloth fabric The textiles are oil repellent, water repellent and water pressure resistant. The method with the highest test results for this kind of fabric is the JIS L-1099 b1, b2 Japanese Industrial Standard test. Test principle as a desiccant. Hoop the PTFE film on the plastic cup with a rubber ring to create a water vapor permeable cup. Before wrapping the film on the cup, put enough liquid into the water vapor-permeable cup to fill about 2/3 of the cup’s volume. Take 3 samples of 500px*750px square from each fabric. Each sample is placed on the test support frame.
Textile’s main products are Oxford cloth series: waterproof Oxford cloth, flame-retardant Oxford cloth, coated Oxford cloth, fluorescent Oxford cloth, etc. If you are interested in or have questions about the products of Suzhou Textile Co., Ltd., please contact the online customer service on the webpage, or leave a message. We will provide dedicated service to meet all your needs!
